Crestron DM-NAX-2XLRI-1G Audio-over-IP wandplaat met XLR DM NAX Zwart
° PoE-voeding
° DM NAX/AES67 audio-over-IP
Interne referentie:
DM-NAX-2XLRI-1G
Beschrijving:
The Crestron DM‑NAX‑2XLRI‑1G Audio-over-IP Wall Plate (Black) is a single-gang, PoE-powered edge device that brings professional XLR audio connectivity into your Audio-over-IP ecosystem.

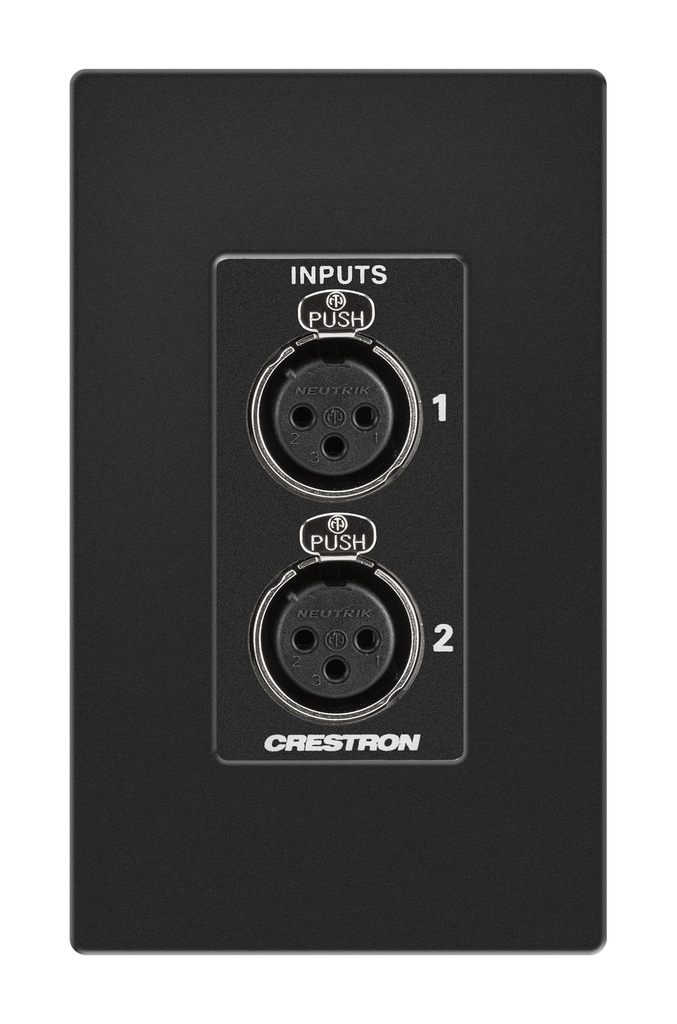

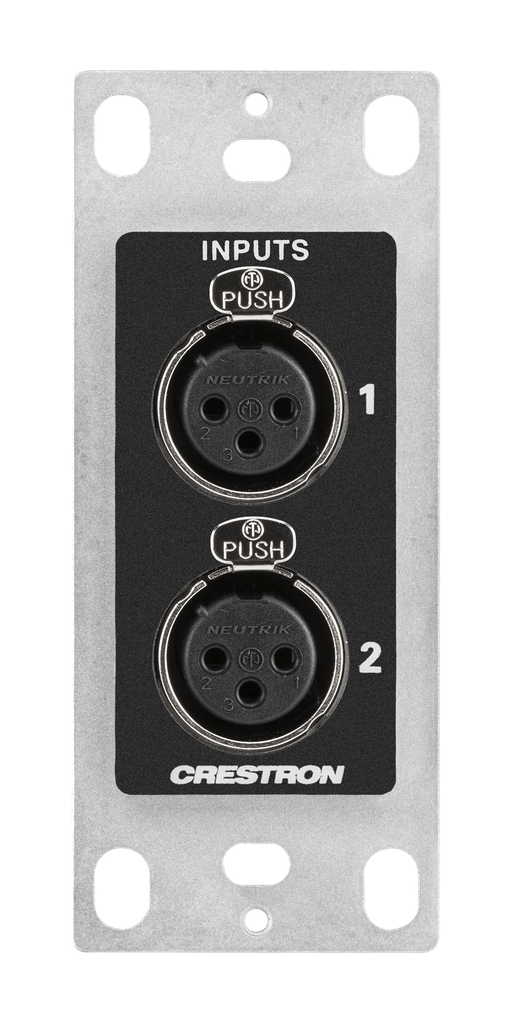

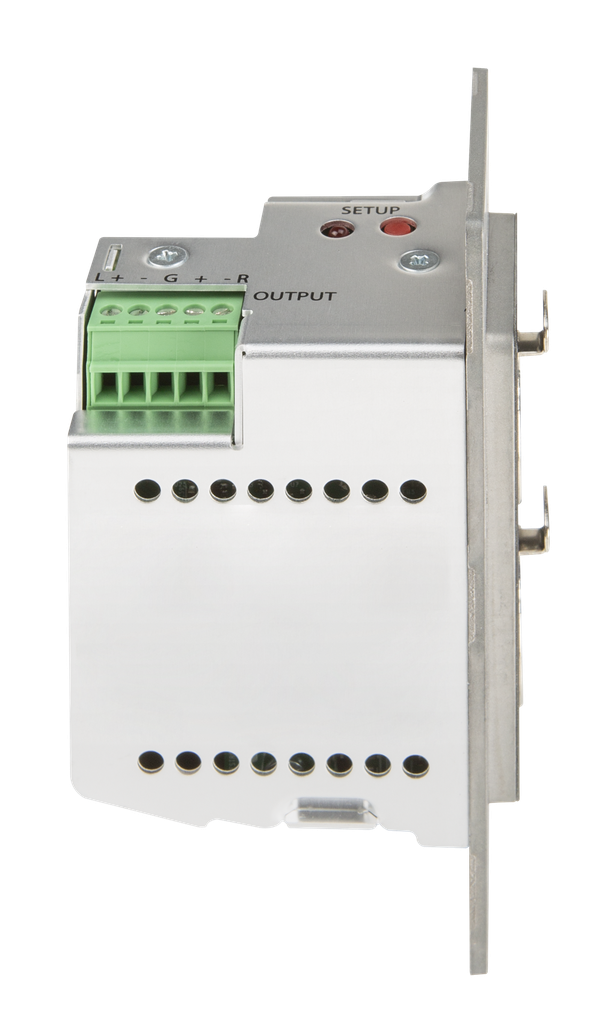

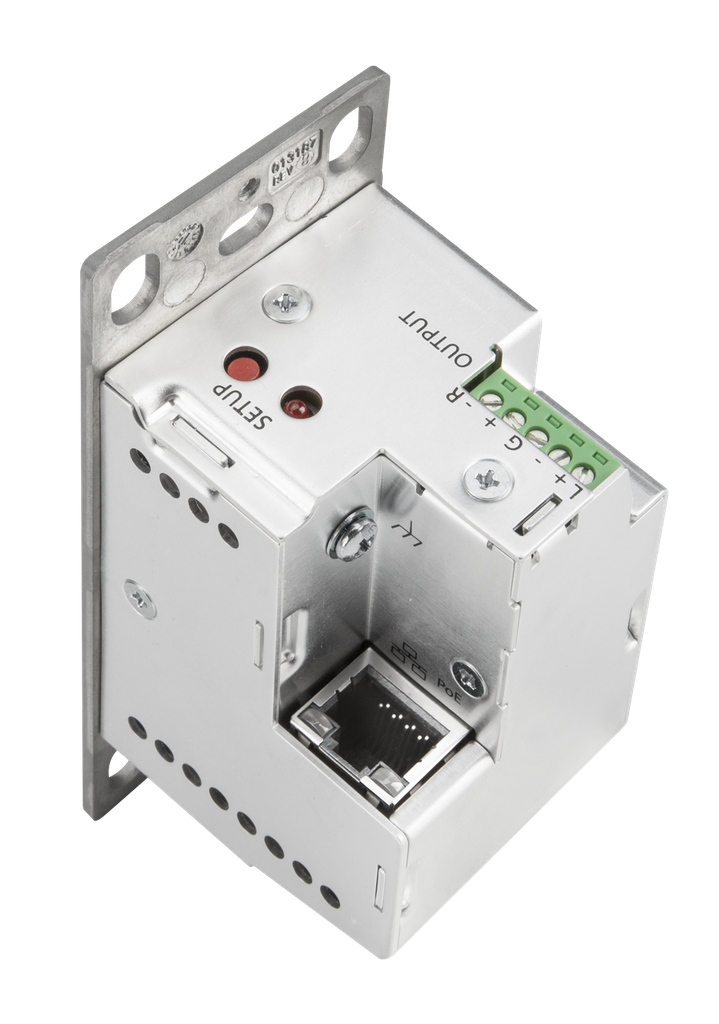

It features two front-panel XLR inputs, configurable for mic or line level, with switchable +48 V phantom power, ideal for connecting microphones or mixing desks. On the rear, a 5‑pin terminal block outputs a balanced line-level feed, enabling daisy-chaining to passive wall plates or local amplification .
Built for networked audio, it supports DM NAX, AES67, Dante, and interfaces with DM NVX sources, allowing any XLR input to stream over IP—or decode incoming streams for local playback. Each channel includes DSP tools like 5‑band EQ and level control via the web UI.
Top Specs:
- Inputs & outputs: 2× XLR mic/line (with phantom power); 1× balanced line-level output
- Networking & power: PoE-powered, 1 GbE Ethernet, DM NAX/AES67/Dante compatible
- DSP & control: 5-band EQ per input, level control, web/SIMPL/C#/REST interface
- Installation: Fits standard US single-gang boxes or rack rails; hot-swappable and easy to integrate
In summary, the DM‑NAX‑2XLRI‑1G is a high-quality, flexible wall-mounted audio interface that transforms XLR sources into network streams (and vice versa) with professional DSP—all in a compact, installation-friendly package.
Specificaties
| Merk | Crestron |
| Kleur | Zwart |
| Aantal Poorten | 2 |
| Dante | Ja |
| RS232 | Nee |
| Verbindingsopties | XLR |
| POE | Ja |
