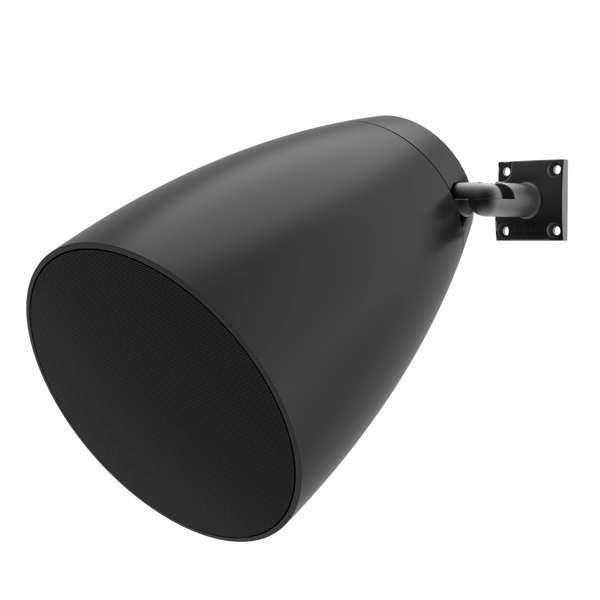

Audac - ALTI6M/B -2-Weg opbouwluidspreker 16Ω 6.5" Zwart
° Programmavermogen: 120 W
° RMS/AES-vermogen: 60 W
° Max. SPL: 101 dB
° Gevoeligheid 1 W/1 m: 83 dB
° Impedantie: 16 Ω
° Powertaps @ 100 V: 60/30/15 W
° powertaps @ 70 V: 60/30/15/7,5 W
° Frequentierespons +-3 dB: 75 Hz - 20 kHz
Interne referentie:
ALTI6M/B
Beschrijving:
The ALTI6M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions being used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through weatherproof AWX5™ connectors, this construction has an IP65 rating.
The ALTI6M features a 2-way 6,5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved.
Specificaties
| Merk | Audac |
| Kleur | Zwart |
| Speaker Output | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Impedantie | 16 Ω, 100 V |
ALTI6M/B – Black version
Highlights
- Outdoor rated construction
- Wide opening angle
- Multi-tapping 70V / 100V line transformer
- AWX5™ waterproof connector
- Countless mounting possibilities
- Innovative & unique design
Description
"Don't feel like hanging around?"
The ALTI6M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions being used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through weatherproof AWX5™ connectors, this construction has an IP65 rating.
The ALTI6M features a 2-way 6,5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved.
System specifications
| Property | Value |
|---|---|
| Speaker type | 2-way coaxial |
| Program power handling | 120 W |
| Continuous power (AES) | 60 W |
| Impedance | 16 Ω |
| Line Transformer Tappings / 1 | 83 Ω - 100 V / Not used - 70 V / 60 W |
| Line Transformer Tappings / 2 | 167 Ω - 100 V / 60 W - 70 V / 30 W |
| Line Transformer Tappings / 3 | 333 Ω - 100 V / 30 W - 70 V / 15 W |
| Line Transformer Tappings / 4 | 667 Ω - 100 V / 15 W - 70 V / 7.5 W |
| Dispersion / Conical | 115° (average 500 Hz to 5 kHz @ -6 dB) |
| Connectors | Waterproof AWX-5 connector |
| Sensitivity (1W/1m) | 83 dB |
| Sound Pressure (Max. W/1m) / @ 16 Ω | 101 dB |
| Frequency / Range (-10 dB) | 61.5 Hz - 20 kHz |
| Frequency / Response (± 3 dB) | 75 Hz - 17 kHz |
| Ingress Protection rating | IP65 |
| Peak power handling | 240 W |
Product Features
| Property | Value |
|---|---|
| Connection cable length | 0.7 m |
| Construction | Polypropylene |
| Front finish | Aluminium grill |
| Mounting & handling | 2-way Revolving mounting bracket |
| Weight | 3.48 kg |
| Dimensions | 235 x 230 x 336 mm (W x H x D) |
| Accessories / Included | 5-pin connection cable (70 cm) AWC07 |
| Accessories / Included | 2-way Revolving mounting bracket |
Product attributes
- Program power handling: 120 W
- Driver size: 6.5"
- Brand: AUDAC
- Features: Weatherproof, Full range
- Impedance: 16 Ω, High impedance (70 & 100V)
- Weatherproof: Yes
- Usage: Indoor, Outdoor
Key features
- Voltage: 70-100 V
- Impedance: 16 Ohm
- Warranty: 5 years
- Certification: IP65
- Properties: Weatherproof
