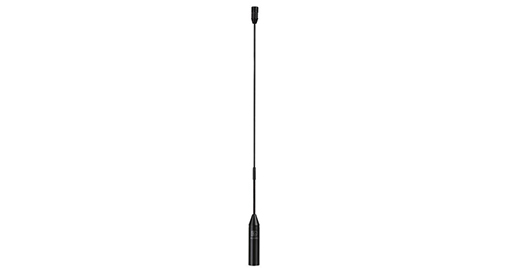

Audac - CMX215/55 -Pijphals condensatormicrofoon 55 cm
° Type: Electret-condensor aan de achterkant
° Polair patroon: cardioïde
° Impedantie: 200 Ω
° Dynamisch bereik: /
° Gevoeligheid: 45 dB +- 3 dB
Interne referentie:
CMX215/55
Beschrijving:
The CMX215 is a pipe-neck condenser microphone fitted on a slim gooseneck with an XLR base. It is particularly designed for speech reinforcement systems in a wide variety of applications, such as conference rooms, houses of worship, auditoria, ... or any other kind of speech announcement systems.
The back-electret condenser capsule with unidirectional (cardioid) characteristics reduces sound pickup from the sides and rear, improving speech intelligibility and eliminating unwanted noise and feedback. The high Max. input SPL guarantees a high-quality sound reproduction, even when exposed to vigorous sound.
The slim pipe-neck design allows a discrete blending in any possible interior or background, while the flexing gooseneck part allows directional placement. The microphone comes available in three versions with a length of 30, 45 and 55 cm, offering a solution for any application-specific placement. The shorter version is perfect for placement on tables or desks, while the longer version finds its specific application on altars, lecterns, ... The included windscreen reduces unwanted and popping sounds.
Specificaties
| Microfoon Type | Condensor |
| Impedantie | 200 Ω |
| Merk | Audac |
| Richtingskarakteristiek | Cardioïde |
| Kleur | Zwart |
CMX215/55 – 55 cm version
Highlights
- Flexing gooseneck structure for highly accurate positioning
- Slim & elegant pipe-neck design
- High quality back electret condenser capsule with cardioid pickup pattern
Description
The CMX215 is a pipe-neck condenser microphone fitted on a slim gooseneck with an XLR base. It is particularly designed for speech reinforcement systems in a wide variety of applications, such as conference rooms, houses of worship, auditoria, ... or any other kind of speech announcement systems. The back-electret condenser capsule with unidirectional (cardioid) characteristics reduces sound pickup from the sides and rear, improving speech intelligibility and eliminating unwanted noise and feedback. The high Max. input SPL guarantees a high-quality sound reproduction, even when exposed to vigorous sound. The slim pipe-neck design allows a discrete blending in any possible interior or background, while the flexing gooseneck part allows directional placement. The microphone comes available in three versions with a length of 30, 45 and 55 cm, offering a solution for any application-specific placement. The shorter version is perfect for placement on tables or desks, while the longer version finds its specific application on altars, lecterns, ... The included windscreen reduces unwanted and popping sounds.
Applications
- Houses of worship
- Corporate
- Education
System specifications
| Property | Value |
|---|---|
| Microphone / Type | Back electret condenser |
| Polar Pattern | Cardioid (unidirectional) |
| Frequency / Response (± 3 dB) | 50 Hz - 18 kHz |
| Sensitivity (1W/1m) | -45 dB ± 3 dB / Pa (@ 1 kHz) |
| Impedance / ± 30% | 200 Ω |
| Signal / Noise | 75 dB |
| Sound Pressure (Max. W/1m) | 130 dB |
| Power / Supply | 10 ~ 52 V DC Phantom Power |
| Outputs / Connector | 3-pin XLR |
Product Features
| Property | Value |
|---|---|
| Colours | Black |
| Dimensions | 19 x 538 mm (Ø x L) (CMX215/45) |
| Dimensions | 19 x 638 mm (Ø x L) (CMX215/55) |
| Weight | 0.070 kg |
| Dimensions | 19 x 388 mm (Ø x L) (CMX215/30) |
| Accessories / Included | Windscreen (MWS200/B) |
| Accessories / Optional | APM base |
| Accessories / Optional | CMA350 microphone shock mount |
Product attributes
- Polar Pattern: Cardioid
Key features
- Warranty: 5 years
