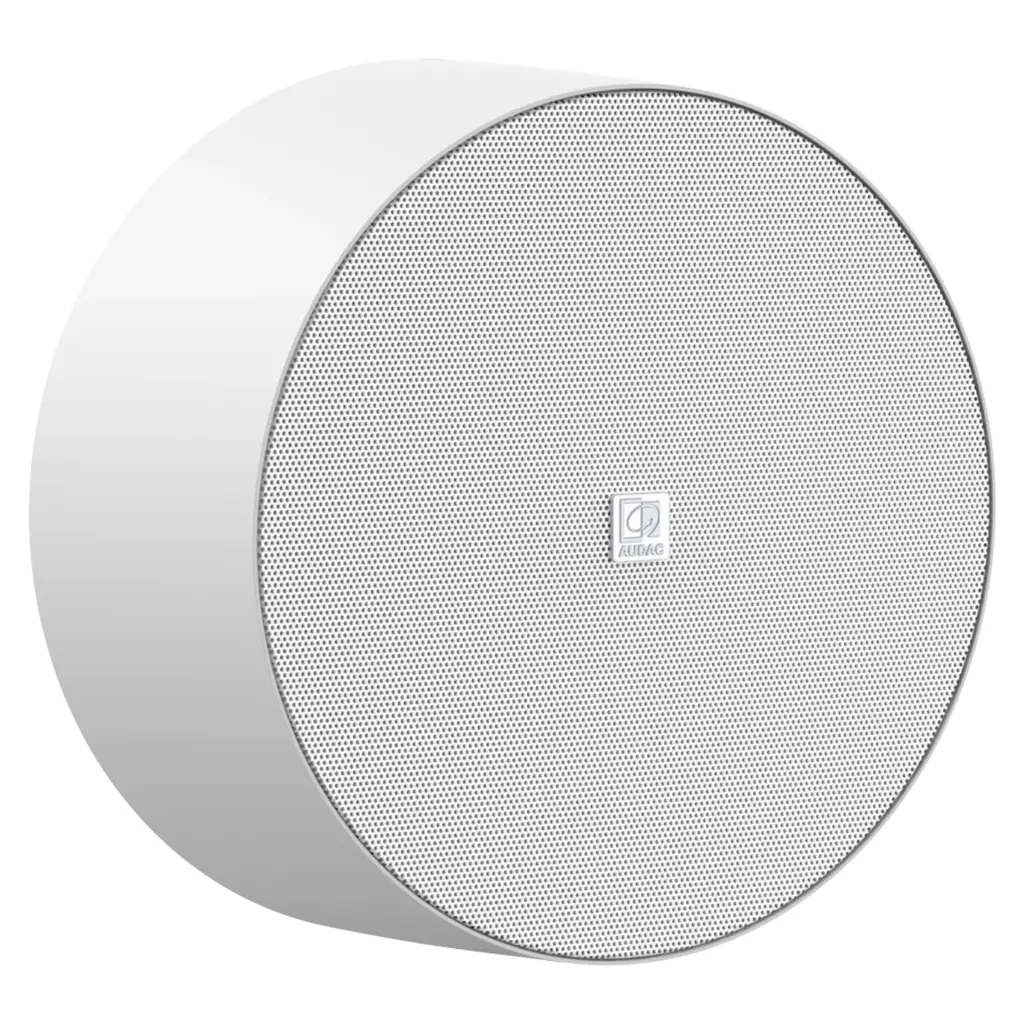

Audac - NELO706VI/W -Opbouwluidspreker Regelbaar 100V Wit
° Programmavermogen: 20 W
° RMS/AES-vermogen: 10 W
° Gevoeligheid 1 W/1 m: 96 dB
° Power taps @ 100 V: 6/3 W
° power taps @ 70 V: 6/3/1,5 W
° Frequentierespons +-3 dB dB: 100 Hz - 15 kHz
° Volumeregelaar: Nee
Interne referentie:
NELO706VI/W
Beschrijving:
The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music & speech is required. It features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS) and is fitted with a line transformer for use in 70V/100V public address systems with power tappings for 6W and 3W. The housing is minimalistic and elegant designed with a very narrow border and a finely perforated steel grill on the front. Connections are made through SnapConnect™ terminals, offering a faster, more reliable and safer choice for fixed installations. The NELO706 are available in various models with (NELO706V) and without (NELO706) individual volume controller on its side while being available in two different colours (Black /B & White /W) to blend in with any residential, commercial or industrial environment.
Specificaties
| Merk | Audac |
| Kleur | Wit |
| Speaker Output | High Impedance (70V / 100V) |
| Impedantie | 100 V |
NELO706VI/W – White version (RAL9016) with volume controller
Highlights
- Minimalistics and elegant housing
- With or without volume controller
- High intelligibility and sound accuracy
- Connection through SnapConnect™ terminals
- Diverse mounting possibilities
- Optional suspension kit (CSK100)
Description
The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music & speech is required. It features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS) and is fitted with a line transformer for use in 70V/100V public address systems with power tappings for 6W and 3W. The housing is minimalistic and elegant designed with a very narrow border and a finely perforated steel grill on the front. Connections are made through SnapConnect™ terminals, offering a faster, more reliable and safer choice for fixed installations. The NELO706 are available in various models with (NELO706V) and without (NELO706) individual volume controller on its side while being available in two different colours (Black /B & White /W) to blend in with any residential, commercial or industrial environment.
Applications
- Residential
- Retail
- Hotels
- Corporate
System specifications
| Property | Value |
|---|---|
| Program power handling | 20 W |
| Continuous power (AES) | 10 W |
| Sensitivity (1W/1m) | 96 dB |
| Sound Pressure (Max. W/1m) / @ 100 V | 106 dB |
| Speaker type | Broadband |
| Drivers | 6.5” Full Range |
| Frequency / Response (± 3 dB) | 100 Hz - 15 kHz |
| Frequency / Range (-10 dB) | 70 Hz - 18 kHz |
| Line Transformer Tappings / 1 | 833 Ω - 100 V / Not used - 70 V / 6 W |
| Line Transformer Tappings / 2 | 1667 Ω - 100 V / 6 W - 70 V / 3 W |
| Line Transformer Tappings / 3 | 3333 Ω - 100 V / 3 W - 70 V / 1.5 W |
| Dispersion / Conical | 140° |
| Connection | SnapConnect™ |
| Volume control | Integrated rotary volume controller (only NELO706V) |
| Peak power handling | 40 W |
Product Features
| Property | Value |
|---|---|
| Colours | Black & White |
| Construction | ABS |
| Colours | White (RAL9003) (NELO706/W) |
| Colours | Black (RAL9005) (NELO706/B) |
| Dimensions | 206.5 x 95 mm (Ø x D) |
| Operating temperature | -25 °C ~ 70 °C |
| Mounting | Wall/Ceiling mounting (two screw holes) |
| Mounting | CSK100 ceiling suspension kit (optional) |
| Front finish | Steel grill |
| Colours | White (RAL9016 grill + RAL9003 housing) (NELO706I/W) |
| Colours | White (RAL9016 grill + RAL9003 housing) (NELO706VI/W) |
| Colours | White (RAL9003) (NELO706V/W) |
Product attributes
- Program power handling: 20 W
- Driver size: 6.5"
- Brand: AUDAC
- Features: Full range
- Impedance: 8 Ω, High impedance (70 & 100V)
- Usage: Indoor
Key features
- Voltage: 70-100 V
- Warranty: 5 years
