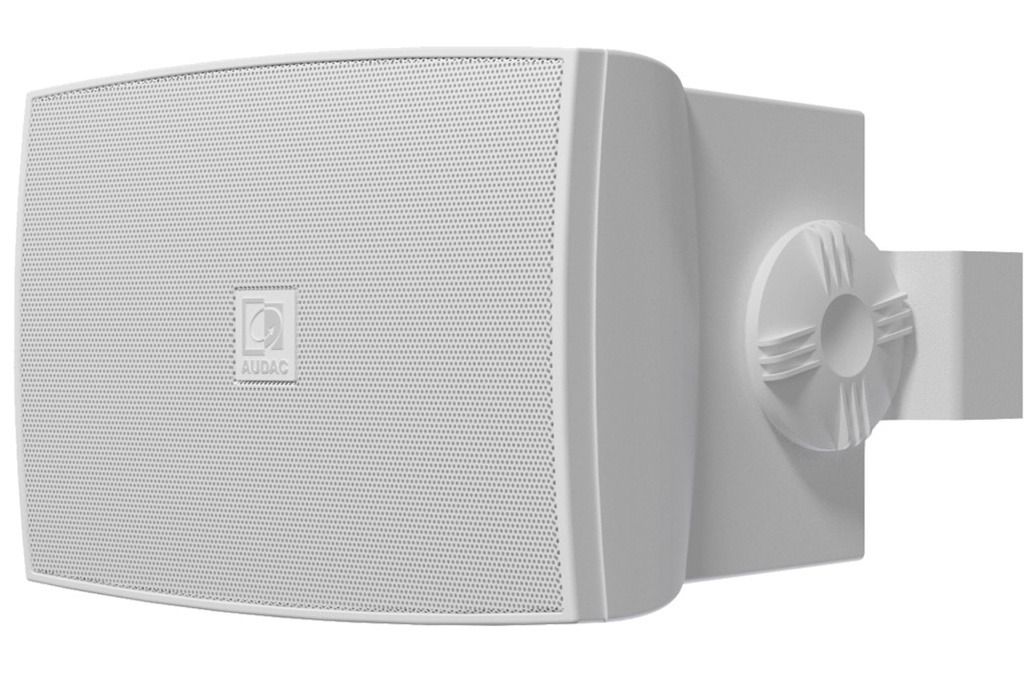

Audac - WX502MK2/W (per paar) - 2-Weg Muurluidspreker 8Ω 5 1/4" Wit
° Programmavermogen: 100 W
° RMS/AES-vermogen: 50 W
° Max. SPL: 102 dB
° Gevoeligheid 1 W/1 m: 87 dB
° Impedantie: 8 Ω
° Powertaps @ 100 V: 40/20/10 W
° powertaps @ 70 V: 40/20/10/5 W
° Frequentiebereik -10 dB: 55 Hz - 20 kHz
Interne referentie:
WX502MK2/W
Beschrijving:
The WX502 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt. The elegant shaped synthetic enclosure is available in two different colours (black & white), making it blend into any environment, going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.
This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind. The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin).. Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.
Specificaties
| Merk | Audac |
| Kleur | Wit |
| Speaker Output | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Impedantie | 100 V, 8 Ω |
WX502MK2/W – White version
Highlights
- 1" Dome tweeter
- 5 1/4" Low frequency loudspeaker
- Vertical and horizontal mounting
- Terminal block connection (MK2 version)
- Multi-tapping 70V / 100V line transformer
Description
The WX502 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt. The elegant shaped synthetic enclosure is available in two different colours (black & white), making it blend into any environment, going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.
This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind. The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin).. Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.
Applications
- Bars & Restaurants
- Sporting facilities
- Residential
- Clubs
- Retail
- Corporate
System specifications
| Property | Value |
|---|---|
| Crossover / Frequency | 2.5 kHz |
| Crossover / Type | Passive built-in |
| Drivers / HF | 1” |
| Drivers / LF | 5” |
| Frequency / Range (-10 dB) | 55 Hz - 20 kHz |
| Frequency / Response (± 3 dB) | 70 Hz - 18 kHz |
| Impedance | 8 Ω |
| Ingress Protection rating | IP40 |
| Program power handling | 100 W |
| Sensitivity (1W/1m) | 87 dB |
| Sound Pressure (Max. W/1m) / @ 100 V | 102 dB |
| Sound Pressure (Max. W/1m) / @ 8 Ω | 104 dB |
| Speaker type | 2-way |
| Continuous power (AES) | 50 W |
| Dispersion / Horizontal | 110° |
| Dispersion / Vertical | 110° |
| Line Transformer Tappings / 1 | 125 Ω - 100 V / Not used - 70 V / 40 W |
| Line Transformer Tappings / 2 | 250 Ω - 100 V / 40 W - 70 V / 20 W |
| Line Transformer Tappings / 3 | 500 Ω - 100 V / 20 W - 70 V / 10 W |
| Line Transformer Tappings / 4 | 1000 Ω - 100 V / 10 W - 70 V / 5 W |
| Peak power handling | 200 W |
Product Features
| Property | Value |
|---|---|
| Colours | Black (RAL9005) (WX502MK2/B) |
| Colours | White (RAL9003) (WX502MK2/W) |
| Construction | ABS |
| Mounting & handling | Mounting bracket |
| Operating temperature | -25 °C ~ 70 °C |
| Weight | 2.75 kg |
| Front finish | Steel grill |
| Dimensions | 219 x 146 x 184.4 mm (W x H x D) (Incl. bracket) |
| Accessories / Included | Mounting bracket |
Product attributes
- Program power handling: 100 W
- Driver size: 5"
- Features: Full range
- Impedance: 8 Ω, High impedance (70 & 100V)
- Usage: Indoor
Key features
- Voltage: 70/100 V
- Impedance: 8 Ohm
- Warranty: 5 years
