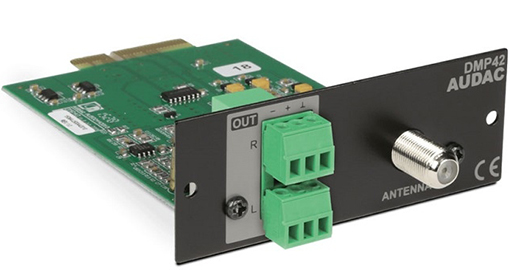

Audac DMP42 SourceCon™ DAB/DAB+ & FM tuner module
° DAB/DAB+/FM support
° Balanced stereo line output
° RDS / radiotext station information
Internal Reference:
DMP42
Beschrijving:
The DMP42 is a professional DAB/DAB+ & FM tuner featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration.
The DMP42 provides access to a wide variation of radio stations while guaranteeing a high-quality audio reproduction. Station selection can be done manually or automatically, while up to 10 preferred channels can be internally stored and recalled. Radio station information carried by RDS / Radiotext can be retrieved, while other functions such as mono/stereo switching (FM) always guarantee the best possible audio clarity.
The signal output level is user-configurable, while dynamic range compression (DRC) is supported, improving the intelligibility for low volumes in applications with high levels of background noise. Signal reception strength can be retrieved from the module and indicated on the graphical interface of the controlling device. The antenna input is implemented by an F-type connector on its panel, allowing connection of the included antenna cable or any other external antenna using 75 Ohm coaxial cabling. The balanced stereo line output is connected through two 3-pin terminal block connections.
Specifications
| Brand | Audac |
| Color | Grey |
| Dante | Nee |
| RS232 | Nee |
DMP42 – SourceCon™ DAB/DAB+ & FM tuner module
Highlights
- Works with any SourceCon™ enabled device
- DAB/DAB+/FM support
- RDS / radiotext station information
- Manual & auto tuning
- F-type antenna connection
- Preferential station storage
- Signal strength indication
- True plug & play solution
- Balanced stereo line output
Description
The DMP42 is a professional DAB/DAB+ & FM tuner featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration.
The DMP42 provides access to a wide variation of radio stations while guaranteeing a high-quality audio reproduction. Station selection can be done manually or automatically, while up to 10 preferred channels can be internally stored and recalled. Radio station information carried by RDS / Radiotext can be retrieved, while other functions such as mono/stereo switching (FM) always guarantee the best possible audio clarity.
The signal output level is user-configurable, while dynamic range compression (DRC) is supported, improving the intelligibility for low volumes in applications with high levels of background noise. Signal reception strength can be retrieved from the module and indicated on the graphical interface of the controlling device. The antenna input is implemented by an F-type connector on its panel, allowing connection of the included antenna cable or any other external antenna using 75 Ohm coaxial cabling. The balanced stereo line output is connected through two 3-pin terminal block connections.
Please note: An outdoor antenna is necessary for DAB/DAB+ reception. For DAB/DAB+ reception we suggest the RGA12 outdoor DAB/DAB+ antenna.
Applications
- Clubs
- Houses of worship
- Corporate
- Retail
System specifications
| Property | Value |
|---|---|
| Connection | SourceCon™ interface card slot |
| DAB / Crosstalk (@ 1 kHz) | 53 dB |
| DAB / Sensitivity (1W/1m) | -99 dBm |
| DAB / Signal / Noise | 81 dB |
| DAB / THD+N (@ 1 kHz) | 0.026% |
| DAB / Tuning Range (-10 dB) / Band-3 | 171 ~ 240 MHz |
| DAB / Tuning Range (-10 dB) / L-Band | 1452 ~ 1492 MHz |
| FM / Crosstalk (@ 1 kHz) | 26 dB |
| FM / Frequency Response (± 3 dB) | 30 Hz - 12.5 kHz |
| FM / Sensitivity (1W/1m) | -108 dBm |
| FM / Signal / Noise | 52 dB |
| FM / THD+N (@ 1 kHz) | 0.22% |
| FM / Tuning Range (-10 dB) | 87.5 ~ 108 MHz |
| Inputs | F-type antenna connection (75 Ω) |
| Outputs / Level | +8 dB ~ -32 dB |
| Outputs / Type | Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm)) |
| Power / Consumption | 1.5 W |
| DAB / Frequency Response (± 3 dB) | 42 Hz - 20 kHz |
Product Features
| Property | Value |
|---|---|
| Dimensions | 87 x 34.5 x 114 mm (W x H x D) |
| Mounting | SourceCon™ interface card slot |
| Weight | 0.074 kg |
| Accessories / Included | Antenna cable |
| Accessories / Optional | ASK40S 4-way antenna splitter kit |
| Accessories / Optional | RGA10 - Outdoor FM antenna |
| Accessories / Optional | RGA12 - Outdoor DAB/DAB+ antenna |
Product attributes
- Brand: AUDAC
- Features: Radio tuner
- Suitable for: XMP44, MFA208, MFA216
Key features
- Warranty: 5 years
