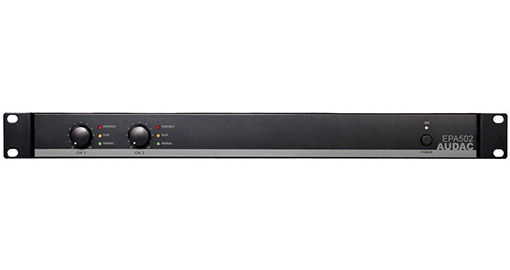

Audac Dual-channel Class-D amplifier 2 x 500W - EPA502
° Stereo @ 4 Ω: 2x500 W
° Stereo @ 8 Ω: 2x250 W
° Bridge @ 8 Ω: 1000 W
° THD+N: <0.01 %
° Signal/noise: >90dB
° Frequency Response: 20Hz - 20kHz
Internal Reference:
EPA502
Beschrijving:
This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality.
Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.
Specifications
| Number of channels | 2 |
| Impedance | Low Impedance (2ohm - 16ohm) |
| Dante | Nee |
| RS232 | Nee |
| Brand | Audac |
EPA502 – Dual-channel Class-D amplifier 2 x 500W
Highlights
- Speakon compatible & terminal block output connections
- Energy-star certified
- Standby energy saving mode
- Convection cooled
- XLR input connections with crossover operation mode switch
- Lightweight class-D amplifier
- Advanced protection circuit
Description
This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.
Applications
- Bars & Restaurants
- Education
- Clubs
- Events
- Corporate
- Retail
System specifications
| Property | Value |
|---|---|
| Frequency / Response (± 3 dB) | 20 Hz - 20 kHz |
| Signal / Noise | > 90 dB |
| THD+N (@ 1 kHz) | |
| Crosstalk (@ 1 kHz) | > 70 dB |
| Technology | Class-D |
| Power / Supply | Switching mode |
| Power / Consumption | 426 W |
| Inputs / Sensitivity | 0 dB (1V RMS) |
| Inputs / Impedance | 12 kΩ balanced |
| Inputs / Connector | XLR female with Male Linkthrough |
| Protection | DC Short circuit |
| Protection | Over heating |
| Protection | Over load |
| Protection | Signal limiting |
| Cooling | Convection cooled |
| Operating temperature | 0° ~ 40° @ 95% Humidity |
| Outputs / Connector | Speakon compatible & 2-pin Euro Terminal Block (5.08 mm) |
| Power / Consumption / Standby | 0.7 Watt (30 min standby time) |
| Power / Supply | AC Input: 100-120V/220-240V~ 50/60Hz |
| Continuous power (AES) / @ 4 Ω Stereo | 2 x 500 W |
| Continuous power (AES) / @ 8 Ω Bridge | 1000 W |
| Continuous power (AES) / @ 8 Ω Stereo | 2 x 300 W |
Product Features
| Property | Value |
|---|---|
| Dimensions | 482 x 44 x 330 mm (W x H x D) |
| Weight | 4.700 kg |
| Mounting | 19” |
| Unit height | 1 HE |
| Construction | Steel |
| Colours | Black |
Product attributes
- Continuous power per channel @ 4 Ω stereo: 500 W
- Features: Energy star rating
- Impedance: 4 Ω, 8 Ω
- Output channels: 2
Key features
- Certification: Energy Star
- Warranty: 5 years
