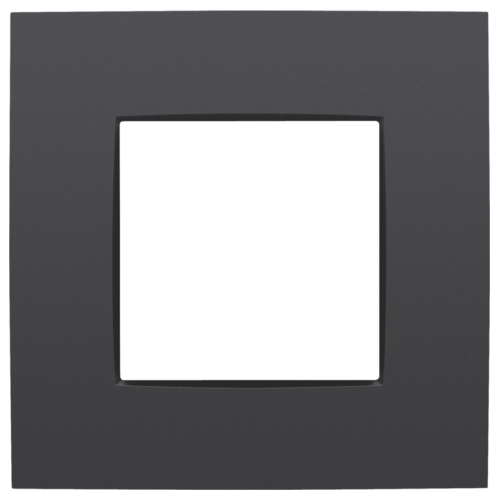

Niko 122-76100 single cover plate intense series Graphite black

° Size: 85x85x8.9mm

Internal Reference: NIK12276100
Beschrijving: Single cover plate, Niko Intense anthracite coated.

Single cover plate for one mechanism.
Color: anthracite lacquered (approximately NCS S 7502 - R, RAL 7022)
Frame structure: It consists of a top frame and a bottom frame that are mechanically connected.
Top frame material: The top frame is made of impact-resistant, dimensionally stable polycarbonate.
Bottom frame material: The bottom frame is made of dark gray polycarbonate (PC) + acrylate-styrene-acrylate (ASA).
Top frame lacquer: The top frame is anthracite lacquered. Installation height: max. 8.5 mm
Fire safety
Self-extinguishing: Complies with a glow wire test at 650°C
Halogen-free
Protection rating: IP41 for the combination of a mechanism, central plate, and cover plate
Impact resistance: The combination of a mechanism, central plate, and cover plate has an impact resistance of IK06
Dimensions (H x W x D): 85 x 85 x 8.9 mm
Approval marks: CEBEC
Marking: CE
