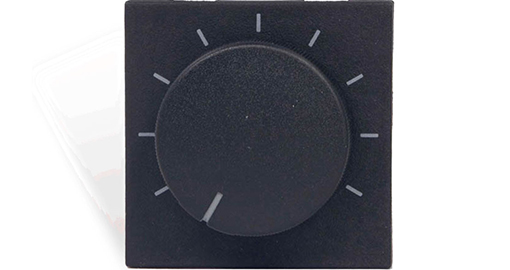

Audac 100V volume controller 36W 45 x 45 mm - VC3036/B
° Max power load: 36 W
° Max operation voltage: 100 V
° Attenuation: 9x3 dB
° Mounting: AUDAC/Niko
Internal Reference:
VC3036/B
Beschrijving:
The VC3036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with AUDAC and Niko installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W). The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.
Specifications
| Color | Black |
| Brand | Audac |
| POE | No |
| RS232 | Nee |
| Dante | Nee |
VC3036/B – Black version
Description
The VC3036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with AUDAC and Niko installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W). The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.
Applications
- Corporate
- Residential
System specifications
| Property | Value |
|---|---|
| Program power handling | 36 W |
| Continuous power (AES) | 36 W |
| Max. operation Voltage | 100 V |
| Attenuation | 9 x 3 dB |
| Relay | 24 V / 25 mA |
| Peak power handling | 72 W |
Product Features
| Property | Value |
|---|---|
| Dimensions | 45 x 45 x 60 mm (W x H x D) |
| Weight | 0.150 kg |
| Construction | ABS |
| Mounting | 45 x 45 mm |
| Colours | Black (RAL9005) (VC3036/B) |
| Colours | White (RAL9010) (VC3036/W) |
| Accessories / Optional | CP45CF1 Cover frame |
| Accessories / Optional | CP45CF2 Cover frame |
Product attributes
- Form factor: 45 x 45 mm
- RMS power output: 36 W
Key features
- Warranty: 5 years
