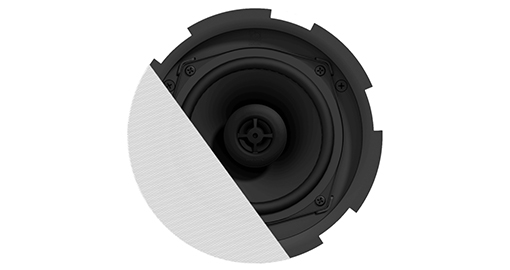

Audac - CIRA724I/W - Enceinte de plafond QuickFit™ 6,5" Grille TwistFix™ Version blanche, 8Ω & 100V (RAL9016)
° Puissance du programme : 60 W
°Puissance RMS/AES : 30 W
° SPL maximum : 103 dB
° Sensibilité 1W/1m : 88 dB
° Prises de puissance/Impédance : 24w/12w/6w/8 Ω
° Réponse en fréquence +- 3dB : 55 Hz - 20 kHz
° Dimensions de découpe : ø 200 mm
Référence interne:
CIRA724I/W
Beschrijving:
Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA7 features a 6.5” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.
Spécifications
| Impedance | 100 V, 8 ohm |
| Dimensions d'encastrement | 200 mm (Ø) |
| Couleur | Blanc |
| Impedance | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Marque | Audac |
CIRA724I/W – White version, 8Ω & 100V (RAL9016)
Highlights
- Lifetime stability and toolfree installation with unique Quickfit™ innovation
- Consistent sound profile throughout complete family
- Exceptional intelligibility and musical performance
- TwistFix™ borderless grill design
- Excellent off axis performance
- Flat frequency response
Description
Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA7 features a 6.5” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.
Applications
- Corporate
- Retail
- Bars & Restaurants
System specifications
| Property | Value |
|---|---|
| Program power handling | 60 W |
| Continuous power (AES) | 30 W |
| Sound Pressure (Max. W/1m) / @ 100 V | 103 dB |
| Sensitivity (1W/1m) | 88 dB |
| Frequency / Response (± 3 dB) | 55 Hz - 20 kHz |
| Speaker type | 2-way coaxial |
| Impedance | 8 Ω (CIRA724) |
| Impedance | 16 Ω (CIRA730D) |
| Frequency / Range (-10 dB) | 45 Hz - 20 kHz |
| Dispersion / Conical | 150° |
| Connectors | Multi-tap Fast-con™ connections |
| Drivers / HF | 1” |
| Drivers / LF | 6.5¼” |
| Line Transformer Tappings / 1 | 24 W - 417 Ω (CIRA724) |
| Line Transformer Tappings / 2 | 12 W - 833 Ω (CIRA724) |
| Line Transformer Tappings / 3 | 6 W - 1667 Ω (CIRA724) |
| Peak power handling | 120 W |
Product Features
| Property | Value |
|---|---|
| Cut-out measurement | 200 mm (Ø) |
| Weight | 1.45 kg (CIRA724) |
| Weight | 1.35 kg (CIRA730D) |
| Construction | ABS |
| Front finish | TwistFix™ borderless finely perforated steel grill |
| Built-in depth | 78 mm (CIRA724) |
| Built-in depth | 75 mm (CIRA730D) |
| Mounting | QuickFit™ mounting system |
| Colours | White (RAL9003) (CIRA724/W& CIRA730D/W) |
| Dimensions | 224 mm (Ø) |
| Mounting | Fixture point for safety cable |
| Operating temperature | -20 °C ~ 60 °C |
Product attributes
- Program power handling: 60 W
- Driver size: 6.5¼"
- Brand: AUDAC
- Features: Optional outdoor protected
- Build-in depth: 78 mm, 75 mm
- Cut-out dimension: 200 mm (Ø)
- Impedance: 8 Ω, High impedance (100 V), 16 Ω
Key features
- Voltage: 100 V
- Impedance: 8 Ohm
- Impedance: 16 Ohm
- Warranty: 5 years
