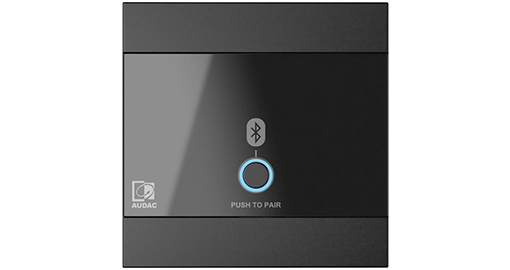

Audac WP220/B Universal wall panel - Bluetooth receiver input - 80 x 80 mm Black version
° Finition façade : Verre + ABS
° Entrée micro : Non
° Entrée ligne : Non
°Bluetooth : Oui
° Alimentation fantôme : Non
° Niveau de sortie : +12 dBV & 0 dBV
Référence interne:
WP220/B
Beschrijving:
The WP220 is a remote universal wall panel with Bluetooth receiver input that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It was never easier connecting your Bluetooth enabled device with your audio installation using this wall plate. It will enable you to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.
On the front side of the wall panel, you'll find a Bluetooth pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...
The WP220 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.
Spécifications
| Couleur | Noir |
| Bluetooth | Oui |
| Marque | Audac |
WP220/B – Black version - EU-style standard
Highlights
- Elegant design to blend in with any environment
- Compatible with EU (80x80 mm) installation materials
- Signal transmission over twisted pair (CAT5E) or better cabling
- Signal transmission insensitive for interference and noise
Description
The WP220 is a remote universal wall panel with Bluetooth receiver input that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It was never easier connecting your Bluetooth enabled device with your audio installation using this wall plate. It will enable you to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.
On the front side of the wall panel, you'll find a Bluetooth pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...
The WP220 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.
Applications
- Education
- Retail
- Bars & Restaurants
- Corporate
System specifications
| Property | Value |
|---|---|
| Outputs / Level | +12 dB |
| Outputs / Level | 0 dB |
| Connection | 8-pin terminal block (3.81 mm pitch) output connection |
| Control | Bluetooth pairing button with LED |
| Control | Output level +12 dBV enable / disable (DIP switch on rear) |
| Control | Bluetooth enable / disable (DIP switch on rear) |
| Control | Mono / Stereo (DIP switch on rear) |
| Inputs / Wall Panel / Type | Bluetooth receiver (Version 5.0) |
Product Features
| Property | Value |
|---|---|
| Colours | Black (RAL9005) (WP220/B) |
| Colours | White (RAL9003) (WP220/W) |
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) |
| Front finish | Elegant ABS front panel with glass |
| Accessories / Optional / Surface mount Installation boxes | WB200 - Surface mount wall box for WP & NWP series |
| Accessories / Optional / Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45SI/FS |
| Accessories / Optional / Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG |
| Installation standard | Compatible with EU installation materials |
| Installation standard | 1-gang US standard (WP220US) |
Product attributes
- Brand: AUDAC
Key features
- Warranty: 5 years
