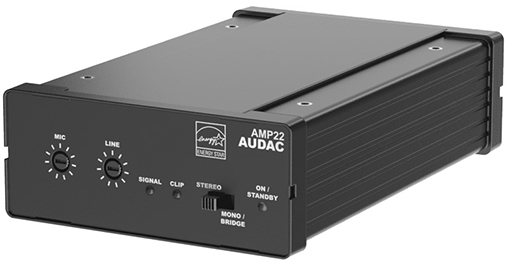

Audac - AMP22 -Mini stereoversterker 2 x 15W
° Stereo @ 4 Ω: 2x15 W
° Stereo @ 8 Ω: 2x7,5 W
° Brug @ 8 Ω: 1x30 W
° Efficiëntie: 87% @ Max
° Frequentiebereik: 20 Hz - 20 kHz
Interne referentie:
AMP22
Beschrijving:
The AMP22 is a mini stereo power amplifier with a power rating of 2 x 15 Watt, that lends itself perfectly to small speaker systems requiring compact and economical audio solutions. It offers the ideal solution for applications such as classrooms, offices and meeting rooms where only a small amount of speakers are required.
The compact size and very high efficiency make it perfectly suited to be hidden in a closet, on a false ceiling or mounted under a desk or table. The combination of the stereo balanced line, with microphone input, makes it perfectly suited for applications where it should be used in combination with projection screens and video sources while a microphone is connected. Two gain potentiometers make it possible to control the sensitivity and balance between music and speech, while a switch allows bridging of the output channels to obtain one channel with merged output power.
A remote wall mixer can be connected for applications where local mixing for the inputs is desirable, while large distances can be covered between the source and amplifier using simple CAT5E or higher twisted pair cabling. The volume controller input allows the connection of an additional wall controller for overall volume control.
The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet or 19” equipment rack installation.
Specificaties
| Aantal Kanalen | 2 |
| Speaker Output | Low Impedance (2ohm - 16ohm) |
| Dante | Nee |
| RS232 | Nee |
| Merk | Audac |
AMP22 – Mini stereo amplifier 2 x 15W - Balanced line & Mic + WP2xx Input
Highlights
- Compatible with WP2xx series remote wall input panels
- Remote audio & volume control input
- Low noise & distortion audio amplification
- Class-D amplifier technology
- Energy star certified
- Passively cooled housing
- Compact and lightweight design
- Compatible with a wide variety of wall control panels
Description
The AMP22 is a mini stereo power amplifier with a power rating of 2 x 15 Watt, that lends itself perfectly to small speaker systems requiring compact and economical audio solutions. It offers the ideal solution for applications such as classrooms, offices and meeting rooms where only a small amount of speakers are required.
The compact size and very high efficiency make it perfectly suited to be hidden in a closet, on a false ceiling or mounted under a desk or table. The combination of the stereo balanced line, with microphone input, makes it perfectly suited for applications where it should be used in combination with projection screens and video sources while a microphone is connected. Two gain potentiometers make it possible to control the sensitivity and balance between music and speech, while a switch allows bridging of the output channels to obtain one channel with merged output power.
A remote wall mixer can be connected for applications where local mixing for the inputs is desirable, while large distances can be covered between the source and amplifier using simple CAT5E or higher twisted pair cabling. The volume controller input allows the connection of an additional wall controller for overall volume control.
The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet or 19” equipment rack installation.
Applications
- Corporate
- Bars & Restaurants
- Retail
System specifications
| Property | Value |
|---|---|
| Inputs / Balanced Stereo / Type | 1 x Stereo Balanced Line |
| Inputs / Balanced Stereo / Connector | 2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
| Inputs / Balanced Stereo / Impedance | 20 kΩ |
| Inputs / Balanced Stereo / Sensitivity | -12 dBV ~ +12 dBV |
| Inputs / Balanced Microphone / Type | 1 x Balanced Microphone |
| Inputs / Balanced Microphone / Connector | 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
| Inputs / Balanced Microphone / Impedance | 47 kΩ |
| Inputs / Balanced Microphone / Sensitivity | -50 dBV ~ -18 dBV |
| Outputs / Type | 1 x Stereo Loudspeaker |
| Outputs / Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) |
| THD+N (@ 1 kHz) | |
| Crosstalk (@ 1 kHz) | |
| Signal / Noise | > 95 dB |
| Power / Consumption / Standby | 0.8 W (PSD241 included) |
| Power / Supply | 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) |
| Efficiency | 87% |
| Cooling | Convection cooled |
| Protection | Over heating |
| Protection | Over load |
| Protection | Signal limiting |
| Energy certification | Energy Star 3.0 |
| Inputs / Other / Type | 1 x Remote Volume controller |
| Protection | DC Short circuit |
| Inputs / Other / Connector | RJ45 |
| Inputs / Remote audio / Connector | RJ45 |
| Continuous power (AES) / @ 4 Ω Stereo | 2 x 15 W |
| Continuous power (AES) / @ 8 Ω Bridge | 30 W |
| Continuous power (AES) / @ 8 Ω Stereo | 2 x 7.5 W |
Product Features
| Property | Value |
|---|---|
| Dimensions | 108 x 44 x 165 mm (W x H x D) |
| Weight | 0.800 kg |
| Accessories / Included | PSD241 - Power supply 24V / 1.67 A (Efficiency Level V) |
| Accessories / Optional | VC3208 Remote volume controller |
| Accessories / Optional | MBS1xx Optional Wall mounting brackets |
| Accessories / Optional | TR3030 100V Transformer 30 W |
| Accessories / Optional | WP2xx Universal wall panel |
Product attributes
- Continuous power per channel @ 4 Ω stereo: 15 W
- Features: Energy star rating
- Impedance: 4 Ω, 8 Ω
- Line inputs: 1
- Mic inputs: 1
- Output channels: 2
Key features
- Certification: Energy Star
- Warranty: 5 years
