19" 6 x 50W Volumeregeling (10 stappen)

° Vermogen: 6x 50W
° 10-staps demping
° 19" rack-installatie

Interne referentie: ATT-1950

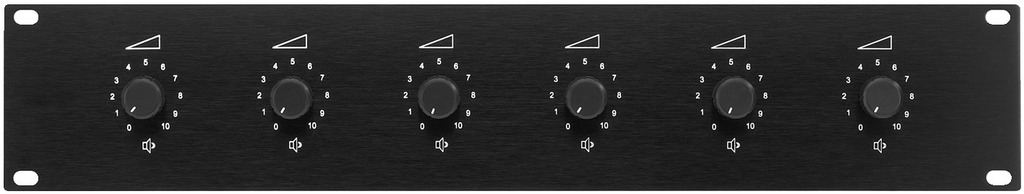

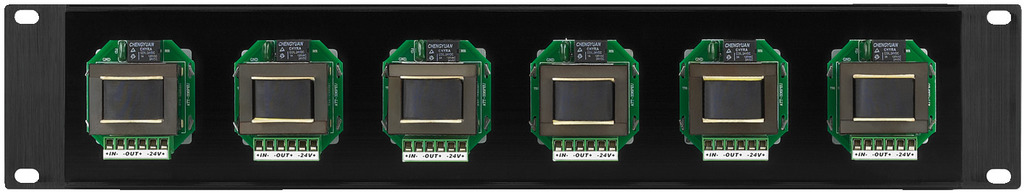

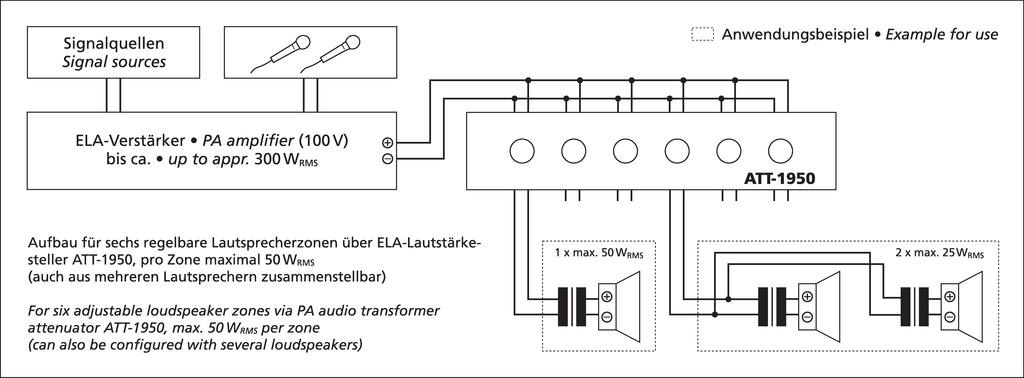

Beschrijving: The Monacor ATT-1950 is a 6-channel PA attenuator designed for 19-inch rack mounting. It features six audio transformers with 100 V outputs and offers attenuation across 10 steps, with the 0 level indicating the off position. The unit includes connections for a priority circuit, accommodating six relays with a 24 V DC/20 mA rating. Its front panel is made of aluminum, and the device measures 484 mm in width, 88 mm in height, and 77 mm in depth, occupying 2U of rack space. The nominal power handling is 6 x 50 W, and the frequency response spans from 50 Hz to 18,000 Hz.
