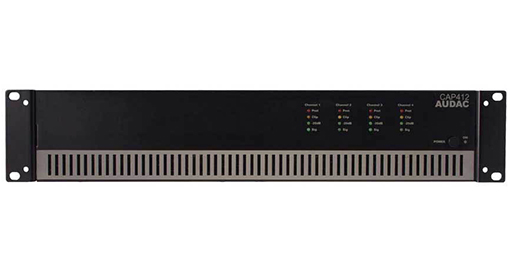

Audac - CAP412 -Quad-kanaals eindversterker 4 x 120W
° RMS-vermogen: 4x120 W
° TDH+N: <0,3%
° Signaal/ruis: >100 dB
° Frequentiebereik: 50 Hz - 22 kHz
° Uitgangsspanning: 70V/100V/4Ω
Interne referentie:
CAP412
Beschrijving:
The CAP412 is a professional four channel 100V power amplifier which is capable of providing 120 Watt to each of the four separate output channels. This creates a great flexibility and new possibilities for installed multi-zone audio distribution systems.
It is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation. Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers.
Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.
Specificaties
| Aantal Kanalen | 4 |
| Speaker Output | High Impedance (70V / 100V), Low Impedance (2ohm - 16ohm) |
| Dante | Nee |
| RS232 | Nee |
| Merk | Audac |
CAP412 – Quad-channel power amplifier 4 x 120W 100V
Highlights
- High-pass filter switch
- XLR input & linkthrough connections with gain control & HPF switch
- Terminal block output connections
- Lightweight class-D amplifier
- Advanced protection circuit
Description
The CAP412 is a professional four channel 100V power amplifier which is capable of providing 120 Watt to each of the four separate output channels. This creates a great flexibility and new possibilities for installed multi-zone audio distribution systems. It is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation. Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers. Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.
Applications
- Bars & Restaurants
- Education
- Clubs
- Corporate
- Retail
System specifications
| Property | Value |
|---|---|
| Signal / Noise | > 100 dB |
| Continuous power (AES) | 4 x 120 W |
| Frequency / Response (± 3 dB) | 50 Hz - 22 kHz |
| THD+N (@ 1 kHz) | |
| Crosstalk (@ 1 kHz) | |
| Technology | Class-D |
| Power / Supply | Switching mode |
| Power / Source | 100 ~ 240 V AC / 50 ~ 60 Hz |
| Inputs / Sensitivity | -0.5 dB ~ 10.5 dB |
| Inputs / Impedance | 10 kΩ balanced |
| Inputs / Connector | XLR female with Male Linkthrough |
| Outputs / Voltage / Impedance | 100 V / 83 Ω |
| Outputs / Voltage / Impedance | 70 V / 42 Ω |
| Outputs / Voltage / Impedance | 4 Ω |
| Outputs / Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) |
| Common mode rejection ratio | 70 dB |
| Protection | DC Short circuit |
| Protection | Over heating |
| Protection | Over load |
| Protection | Signal limiting |
| Cooling | Temperature controlled fan |
| Operating temperature | 0° ~ 40° @ 95% Humidity |
Product Features
| Property | Value |
|---|---|
| Dimensions | 482 x 88 x 420 mm (W x H x D) |
| Weight | 14.800 kg |
| Mounting | 19” |
| Unit height | 2 HE |
| Construction | Steel |
| Colours | Black |
| Accessories / Included | 4 x 4-pin Euro Terminal Block outputs connector |
| Accessories / Optional | CPE100 Rack mount handles |
Product attributes
- Output channels: 4
Key features
- Warranty: 5 years
