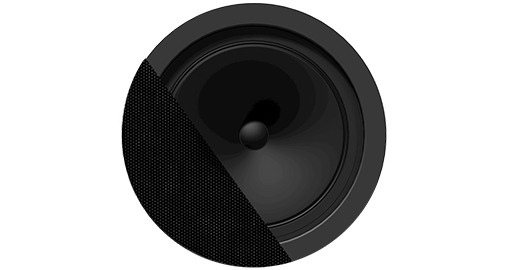

Audac - CENA706/B -SpringFit™ 6,5" plafondluidspreker Zwarte versie 100V & 8 Ω
° Programmavermogen: 20 W
° RMS/AES-vermogen: 10 W
° Maximaal SPL: 106 dB
° Gevoeligheid 1W/1m: 96 dB
° Vermogenskranen/impedantie: 6w/3w
° Frequentierespons +- 3dB: 100 Hz - 15 kHz
° Afmetingen uitsparing: ø 167 mm
Interne referentie:
CENA706/B
Beschrijving:
The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment. With the selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed. The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².
The CENA706 features a 6.5” broadband driver with a continuous power handling of 10 Watt (RMS) and maximum power handling of 20 Watt. It is fitted with a multi-tapping 100V line transformer with tappings for 6W and 3W.
Specificaties
| Impedantie | 100 V, 8 Ω |
| Inbouw Afmetingen | 167 mm (Ø) |
| Kleur | Zwart |
| Speaker Output | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Merk | Audac |
CENA706/B – Black version - 100V
Highlights
- Snapconnect™ enabling a fast and reliable connection
- Eye catching complete family
- Fastest possible installation time with unique Springfit™ innovation
- High intelligibility and sound accuracy
Description
The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment. With the selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed. The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².
The CENA706 features a 6.5” broadband driver with a continuous power handling of 10 Watt (RMS) and maximum power handling of 20 Watt. It is fitted with a multi-tapping 100V line transformer with tappings for 6W and 3W.
Applications
- Corporate
- Retail
- Bars & Restaurants
System specifications
| Property | Value |
|---|---|
| Program power handling | 20 W |
| Continuous power (AES) | 10 W |
| Sound Pressure (Max. W/1m) / @ 100 V | 106 dB |
| Sensitivity (1W/1m) | 96 dB |
| Frequency / Response (± 3 dB) | 100 Hz - 15 kHz |
| Speaker type | Broadband |
| Frequency / Range (-10 dB) | 70 Hz - 18 kHz |
| Dispersion / Conical | 140° |
| Connection | Screw terminal |
| Drivers | 6.5” Full Range |
| Line Transformer Tappings / 2 | 3 W / 3333 Ω |
| Line Transformer Tappings / 1 | 6 W / 1667 Ω |
| Impedance | 8 Ω (CENA706) |
| Impedance | 16 Ω (CENA710D) |
| Connection | SnapConnect™ |
| Peak power handling | 40 W |
Product Features
| Property | Value |
|---|---|
| Cut-out measurement | 167 mm (Ø) |
| Dimensions | 193 x 70 mm (Ø x D) |
| Construction | ABS |
| Front finish | borderless finely perforated steel grill |
| Built-in depth | 67 mm |
| Mounting | SpringFit™ mounting system |
| Colours | White (RAL9003) (CENA706/W) |
| Colours | Black (RAL9005) (CENA706/B) |
| Operating temperature | -15 °C ~ 55 °C |
| Weight | 0.71 kg |
Product attributes
- Program power handling: 20 W
- Driver size: 6.5"
- Brand: AUDAC
- Build-in depth: 67 mm
- Cut-out dimension: 167 mm (Ø)
- Impedance: High impedance (100 V), 16 Ω, 8 Ω
Key features
- Voltage: 100 V
- Impedance: 8 Ohm
- Impedance: 16 Ohm
- Warranty: 5 years
