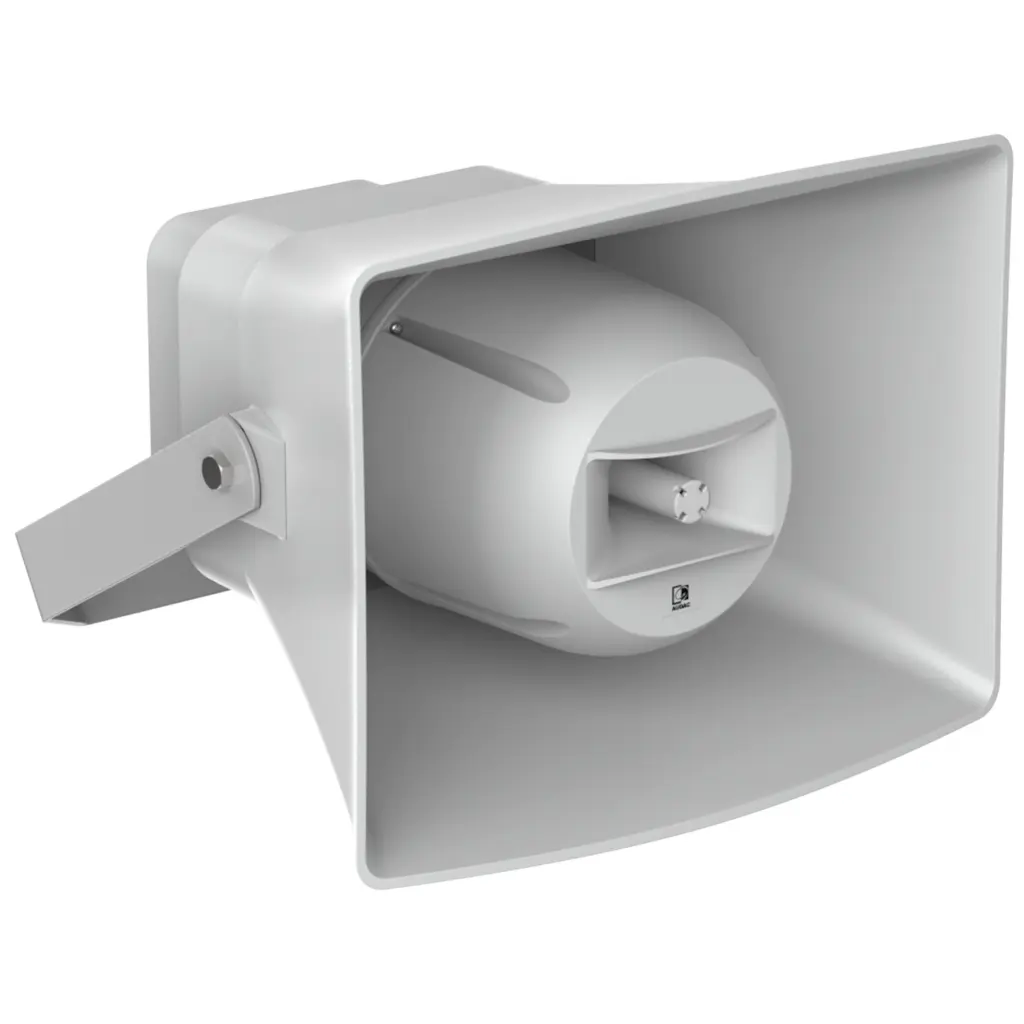

Audac 2-Way Full Range Outdoor Horn Loudspeaker 120W 6.5" - CHA660
° Programmavermogen: 120 W
° RMS/AES-vermogen: 60 W
° Max. SPL: 116 dB
° Gevoeligheid 1 W/1 m: 99 dB
° Vermogenstaps @100 V: 60/30/15 W
° Vermogenstaps @70 V: 60/30/15/7,5 W
° Frequentierespons +-3 dB: 100 Hz - 16 kHz
Interne referentie:
CHA660
Beschrijving:
The CHA660 is a 2-way horn loaded loudspeaker which is designed for long-throw, full range reproduction of music and speech in a wide variety of indoor and outdoor applications.
The construction is composed of a 1" high frequency compression driver and a 6.5" mid/low frequency driver. The selection of high-quality components and acoustic engineering craftmanship makes the CHA660 significantly better performing than other traditional horn speakers. A smooth frequency response and high efficiency ensures an extraordinary clarity of speech and extended frequency response for music.
It features an RMS power handling of 60 Watt and a max power handling of 120 Watt. The sensitivity measures 99 dB while a maximum continuous SPL of 116 dB can be achieved. The frequency response (±3 dB) starts from 100 Hz up to 16 kHz.
A multi-tapping line transformer allows the speaker to be used in 100 Volt and 70 Volt public address systems. It is connected using a waterproof rotatable AWX-5 connector whereby the desired power tap is selected depending on the rotation of the connector. Various power tappings for 60 Watt, 30 Watt, 15 Watt and 7.5 Watt are available.
The enclosure is constructed using high quality UV and impact resistant ABS materials and an included stainless steel mounting bracket allows secure mounting and tilting for perfect directional placement. This makes it comply with IP66 ingress protection requirements, resulting in a weatherproof solution for permanent outdoor installation.
Specificaties
| Merk | Audac |
| Kleur | Grijs |
| Speaker Output | High Impedance (70V / 100V) |
| Impedantie | 100 V |
CHA660 – 2-Way horn loudspeaker 6.5"
Highlights
- Multi-tapping 70V / 100V line transformer
- 6.5" Low frequency loudspeaker
- 1" HF Horn tweeter
- IP66 Ingress protection
- 60 Watt RMS power
Description
The CHA660 is a 2-way horn loaded loudspeaker which is designed for long-throw, full range reproduction of music and speech in a wide variety of indoor and outdoor applications.
The construction is composed of a 1" high frequency compression driver and a 6.5" mid/low frequency driver. The selection of high-quality components and acoustic engineering craftmanship makes the CHA660 significantly better performing than other traditional horn speakers. A smooth frequency response and high efficiency ensures an extraordinary clarity of speech and extended frequency response for music.
It features an RMS power handling of 60 Watt and a max power handling of 120 Watt. The sensitivity measures 99 dB while a maximum continuous SPL of 116 dB can be achieved. The frequency response (±3 dB) starts from 100 Hz up to 16 kHz.
A multi-tapping line transformer allows the speaker to be used in 100 Volt and 70 Volt public address systems. It is connected using a waterproof rotatable AWX-5 connector whereby the desired power tap is selected depending on the rotation of the connector. Various power tappings for 60 Watt, 30 Watt, 15 Watt and 7.5 Watt are available.
The enclosure is constructed using high quality UV and impact resistant ABS materials and an included stainless steel mounting bracket allows secure mounting and tilting for perfect directional placement. This makes it comply with IP66 ingress protection requirements, resulting in a weatherproof solution for permanent outdoor installation.
Applications
- Museums & Themeparks
- Events
- Sporting facilities
- Corporate
- Retail
System specifications
| Property | Value |
|---|---|
| Speaker type | 2-way horn speaker |
| Program power handling | 120 W |
| Continuous power (AES) | 60 W |
| Sensitivity (1W/1m) | 99 dB |
| Frequency / Response (± 3 dB) | 100 Hz - 16 kHz |
| Crossover / Type | Passive built-in |
| Dispersion / Horizontal | 100° |
| Dispersion / Vertical | 60° |
| Ingress Protection rating | IP66 |
| Drivers / HF | 1" HF Horn tweeter |
| Drivers | 6.5” MF / LF Woofer |
| Sound Pressure (Max. W/1m) / @ 100 V | 116 dB |
| Connection | AWX5™ waterproof |
| Line Transformer Tappings / 1 | 83 Ω - 100 V / Not used - 70 V / 60 W |
| Line Transformer Tappings / 2 | 167 Ω - 100 V / 60 W - 70 V / 30 W |
| Line Transformer Tappings / 3 | 333 Ω - 100 V / 30 W - 70 V / 15 W |
| Line Transformer Tappings / 4 | 667 Ω - 100 V / 15 W - 70 V / 7.5 W |
| Peak power handling | 240 W |
Product Features
| Property | Value |
|---|---|
| Dimensions | 420 x 335 x 400 mm (W x H x D) |
| Weight | 6.7 kg |
| Construction | Impact & UV resistant ABS |
| Colours | Light grey (RAL7035) |
| Mounting & handling | Powder coated steel |
| Accessories / Included | Mounting bracket |
Product attributes
- Driver size: 6.5"
- Program power handling: 120 W
- Features: Weatherproof
- Impedance: High impedance (70 & 100V)
Key features
- Power: 60 W
- Voltage: 70-100 V
- Usage: Indoor
- Usage: Outdoor
- Mounting: Surface mount
- Warranty: 5 years
- Properties: Weatherproof
- Certification: IP66
