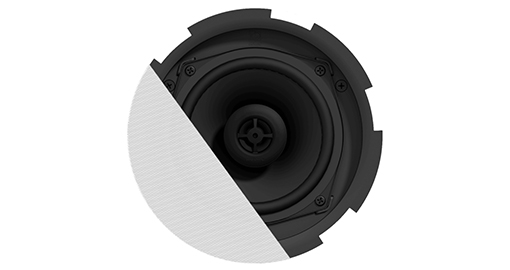

Audac - CIRA530DI/W -QuickFit™ 5 1/4" plafondluidspreker TwistFix™ Witte versie, 16 Ω (RAL9016)
° Programmavermogen: 60 W
° RMS/AES-vermogen: 30 W
° Maximaal SPL: 102 dB
° Gevoeligheid 1W/1m: 87 dB
° Vermogensaftakkingen/impedantie: 16 Ω
° Frequentierespons +- 3dB: 60 Hz - 20 kHz
° Afmetingen uitsparing: ø 170 mm
Interne referentie:
CIRA530DI/W
Beschrijving:
Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.
Specificaties
| Kleur | Wit |
| Speaker Output | Low Impedance (2ohm - 16ohm) |
| Impedantie | 16 Ω |
| Inbouw Afmetingen | 170 mm (Ø) |
| Merk | Audac |
CIRA530DI/W – White version, 16 Ω (RAL9016)
Highlights
- Lifetime stability and toolfree installation with unique Quickfit™ innovation
- Consistent sound profile throughout complete family
- Exceptional intelligibility and musical performance
- TwistFix™ borderless grill design
- Flat frequency response
- Excellent off-axis performance (up to 155°)
Description
Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.
Applications
- Corporate
- Retail
- Bars & Restaurants
System specifications
| Property | Value |
|---|---|
| Program power handling | 60 W |
| Continuous power (AES) | 30 W |
| Sound Pressure (Max. W/1m) / @ 100 V | 102 dB |
| Sensitivity (1W/1m) | 87 dB |
| Frequency / Response (± 3 dB) | 60 Hz - 20 kHz |
| Speaker type | 2-way coaxial |
| Impedance | 16 Ω (CIRA530D) |
| Impedance | 8 Ω (CIRA506 & CIRA524) |
| Frequency / Range (-10 dB) | 45 Hz - 20 kHz |
| Dispersion / Conical | 145° |
| Connectors | Multi-tap Fast-con™ connections |
| Drivers / LF | 5 ¼" Woofer |
| Drivers / HF | 1” |
| Line Transformer Tappings / 1 | 6 W - 1667 Ω (CIRA506) |
| Line Transformer Tappings / 1 | 24 W - 417 Ω (CIRA524) |
| Line Transformer Tappings / 2 | 3 W - 3333 Ω (CIRA506) |
| Line Transformer Tappings / 2 | 12 W - 833 Ω (CIRA524) |
| Line Transformer Tappings / 3 | 1.5 W - 6667 Ω (CIRA506) |
| Line Transformer Tappings / 3 | 6 W - 1667 Ω (CIRA524) |
| Peak power handling | 120 W |
Product Features
| Property | Value |
|---|---|
| Cut-out measurement | 170 mm (Ø) |
| Dimensions | 193 x 83 mm (Ø x D) |
| Weight | 1.10 kg (CIRA506) |
| Weight | 1.15 kg (CIRA524) |
| Weight | 1.05 kg (CIRA530D) |
| Construction | ABS |
| Front finish | TwistFix™ borderless finely perforated steel grill |
| Mounting | QuickFit™ mounting system |
| Colours | White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W) |
| Built-in depth | 83 mm (CIRA524) |
| Built-in depth | 75 mm (CIRA506 & CIRA530D) |
| Dimensions | 193 mm (Ø) |
| Operating temperature | -20 °C ~ 60 °C |
Product attributes
- Driver size: 5¼"
- Program power handling: 60 W
- Brand: AUDAC
- Features: Optional outdoor protected
- Build-in depth: 82 mm, 75 mm
- Cut-out dimension: 170 mm (Ø)
- Impedance: 8 Ω, High impedance (100 V), 16 Ω
Key features
- Voltage: 100 V
- Impedance: 8 Ohm
- Impedance: 16 Ohm
- Warranty: 5 years
