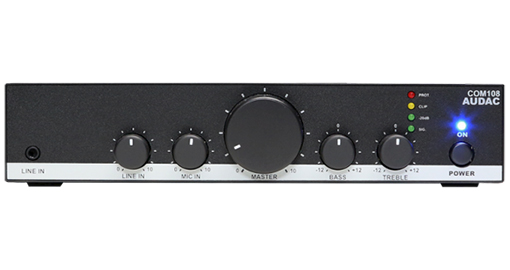

Audac - COM108 -Public Address-versterker 80W @70/100V
° RMS-vermogen: 80 W
° THD+N (@ 1 kHz): <0,05%
° Signaal/ruis: > 90 dB
° Overspraak (@ 1 kHz): > 70 dB
° Frequentiebereik: 20 Hz - 20 kHz
° Uitgangsspanning/impedantie: 100V/70V/4 Ω
Interne referentie:
COM108
Beschrijving:
The COM108 is a compact but versatile public address mixing amplifier which offers solutions for small to medium size audio systems in commercial installations. Typical application are background music systems in retail stores, bars, restaurants and office buildings.
The compact and simple design allows installation in any location and operation through any possible user.
The amplifier is designed using Class-D amplifier technology and delivers an output power of 80 Watt to constant voltage (100V and 70V) or low impedance (4 Ohm) audio systems. A switch mode power supply allows compatibility with a wide variation of mains voltages for global compatibility.
A stereo line input allows connection for a wide variation of audio sources such as media players, radio tuners, internet audio players, ... and many more. A balanced mic / line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled, and compatibility with voice file players is guaranteed by the wide gain adjustment possibility (0 dB - +50 dB).
Specificaties
| Aantal Kanalen | 1 |
| Speaker Output | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Dante | Nee |
| RS232 | Nee |
| Voorversterker | Nee |
| Merk | Audac |
COM108 – Public Address Amplifier 80W @70/100V
Highlights
- Table top or half rackspace installation
- Compact design
- Low impedance & constant voltage output
- Terminal block output connections (4Ω, 70V, 100V)
- Lightweight class-D amplifier
- unbalanced stereo line input
- 1 x Microphone input
- Priority audio inputs with phantom power
- 1 x priority mute contact
Description
The COM108 is a compact but versatile public address mixing amplifier which offers solutions for small to medium size audio systems in commercial installations. Typical application are background music systems in retail stores, bars, restaurants and office buildings.
The compact and simple design allows installation in any location and operation through any possible user.
The amplifier is designed using Class-D amplifier technology and delivers an output power of 80 Watt to constant voltage (100V and 70V) or low impedance (4 Ohm) audio systems. A switch mode power supply allows compatibility with a wide variation of mains voltages for global compatibility.
A stereo line input allows connection for a wide variation of audio sources such as media players, radio tuners, internet audio players, ... and many more. A balanced mic / line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled, and compatibility with voice file players is guaranteed by the wide gain adjustment possibility (0 dB - +50 dB).
The COM108 is a table-top standing device, while rack mounting in 10.5" or 19" equipment racks is possible using an optionally available mounting set (MBS310).
Applications
- Corporate
- Retail
- Bars & Restaurants
System specifications
| Property | Value |
|---|---|
| Inputs / Balanced Microphone / Sensitivity | -0 dB ~ +50 dB |
| Inputs / Balanced Microphone / Connector | 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
| Inputs / Balanced Microphone / Type | 1 x Balanced Microphone |
| Inputs / Unbalanced Stereo / Sensitivity | -4 dB ~ 20 dB |
| Frequency / Response (± 3 dB) | 20 Hz - 20 kHz |
| Signal / Noise | > 90 dB |
| THD+N (@ 1 kHz) | |
| Crosstalk (@ 1 kHz) | > 70 dB |
| Technology | Class-D |
| Power / Supply | Switching mode |
| Power / Supply / Operating | 100 ~ 240 V AC / 50 ~ 60 Hz |
| Inputs / Balanced Microphone / Phantom Power | 15 V DC |
| Inputs | Priority mute contact |
| Outputs / Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) |
| Outputs / Voltage / Impedance | 100/ 70 V / 4 Ω |
| Protection / Amplifier | DC Short circuit |
| Protection / Amplifier | Over heating |
| Protection / Amplifier | Signal limiting |
| Cooling | Convection cooled |
| Operating temperature | 0° ~ 40° @ 95% Humidity |
| Inputs / Unbalanced Stereo / Connector | RCA / 3.5 mm Jack |
| Continuous power (AES) / @ 4 Ω | 1 x 80 W |
Product Features
| Property | Value |
|---|---|
| Dimensions | 217.5 x 43.7 x 300 mm (W x H x D) |
| Weight | 3 kg |
| Mounting | 1/2 19” / 1 HE or tabletop |
| Construction | Steel |
| Colours | Black |
| Accessories / Optional | 19” Rackmount adapter |
Product attributes
- Continuous power per channel @ 4 Ω stereo: 80 W
- Continuous power per channel @ 70/100V: 80 W
- Features: Priority mute contact
- Impedance: 4 Ω, High impedance (70 & 100V)
- Line inputs: 1
- Mic inputs: 1
- Output channels: 1
Key features
- Warranty: 5 years
