Audac - SP22 -Outdoor Heavy Duty Geluid Projector 40W 100V Grijs
° Programmavermogen: 40 W
° RMS/AES-vermogen: 20 W
° Max. SPL: 105 dB
° Gevoeligheid 1W/1m: 93 dB
° Vermogenstaps: 20/10/5/2,5
° Frequentierespons +-3 dB: 110 Hz - 18 kHz
Interne referentie:
SP22
Beschrijving:
The SP series are high efficiency sound projectors designed to provide good speech intelligibility and background music in a wide variation of applications. They are all weather-proof treated to be used indoor as well as outdoor and are perfect suited to be used in large 100V broadcast systems such as train stations or airports. They all meet the IP56 Ingress Protection standard. The SP22 is a professional humidity and weatherproof unidirectional sound projector with a high efficiency level. It features a 5" full range driver and a built-in 100V line transformer with power taps for 20 Watt, 10 Watt or 5 Watt, which can be selected by connecting the corresponding pair of the 4 core connection cable.
Specificaties
| Merk | Audac |
| Kleur | Grijs |
| Speaker Output | High Impedance (70V / 100V) |
| Impedantie | 100 V |

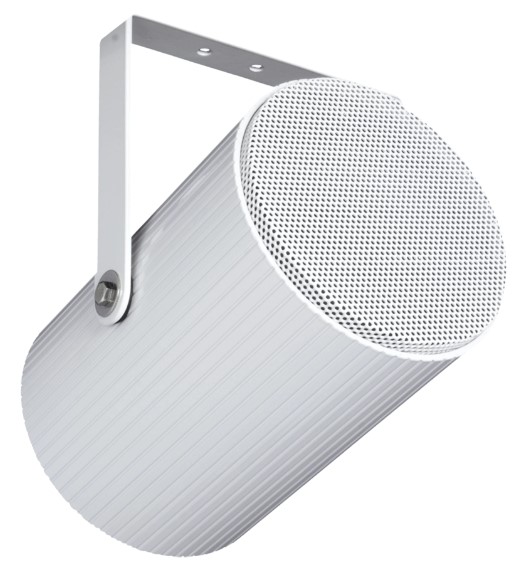

SP22 – Heavy duty sound projector
Description
The SP series are high efficiency sound projectors designed to provide good speech intelligibility and background music in a wide variation of applications. They are all weather-proof treated to be used indoor as well as outdoor and are perfect suited to be used in large 100V broadcast systems such as train stations or airports. They all meet the IP56 Ingress Protection standard. The SP22 is a professional humidity and weatherproof unidirectional sound projector with a high efficiency level. It features a 5" full range driver and a built-in 100V line transformer with power taps for 20 Watt, 10 Watt or 5 Watt, which can be selected by connecting the corresponding pair of the 4 core connection cable.
Applications
- Government facilities
- Corporate
- Retail
System specifications
| Property | Value |
|---|---|
| Rated Power | 20 W |
| Frequency / Response (± 3 dB) | 110 Hz - 15 kHz |
| Sensitivity (1W/1m) | 93 dB |
| Line Transformer Tappings / 2 | 10 W / 1000 Ω |
| Line Transformer Tappings / 3 | 5 W / 2000 Ω |
| Drivers | 5” |
| Line Transformer Tappings / 1 | 20 W / 500 Ω |
Product Features
| Property | Value |
|---|---|
| Dimensions | 138 x 205 mm (Ø x D) |
| Weight | 2.200 kg |
| Construction | Aluminum |
| Front finish | Aluminium grill |
| Colours | White |
| Projector way | 1 |
| Connection cable length | 3 m |
| Operating temperature | -20 °C ~ 60 °C |
Product attributes
- Driver size: 5"
- Program power handling: 2 x 20 W
- Features: Vandal proof, Weatherproof
- Impedance: High impedance (100 V)
Key features
- Voltage: 100 V
- Certification: IP56
- Warranty: 5 years
- Properties: Weatherproof
