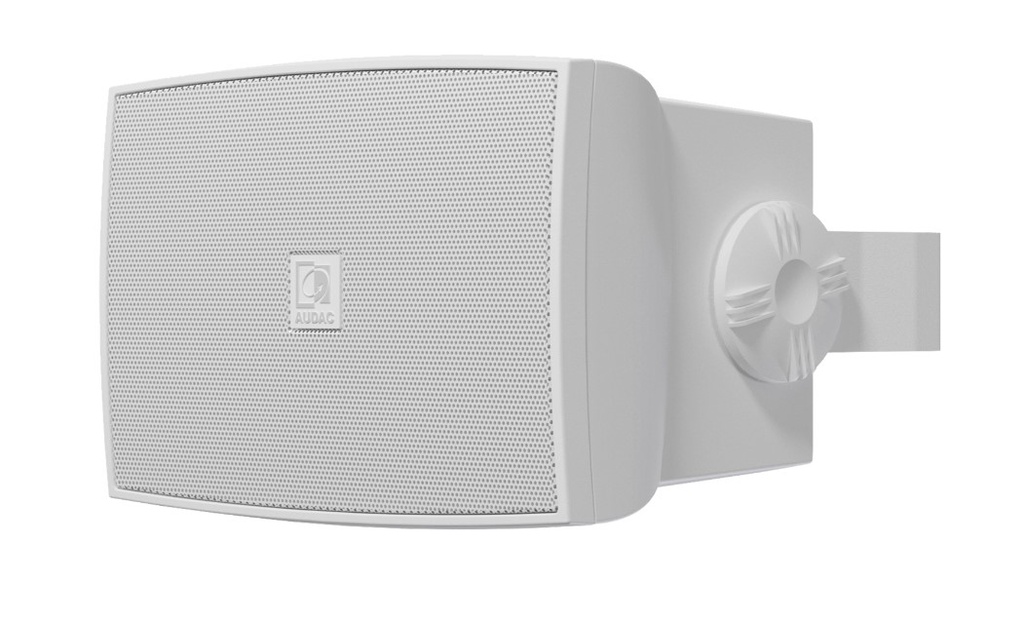

Audac - WX502MK2/OW (per paar) - 2-Weg Outdoor Muurluidspreker 8Ω 5 1/4" Wit
° Programmavermogen: 100 W
° RMS/AES-vermogen: 50 W
° Max. SPL: 102 dB
° Gevoeligheid 1 W/1 m: 87 dB
° Impedantie: 8 Ω
° Powertaps @ 100 V: 40/20 W
° powertaps @ 70 V: 40/20/10 W
° Frequentiebereik -10 dB: 55 Hz - 20 kHz
Interne referentie:
WX502MK2/OW
Beschrijving:
The WX502/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt.
The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX502/O vertically as well as horizontally.
Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.
Specificaties
| Merk | Audac |
| Kleur | Wit |
| Speaker Output | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Impedantie | 100 V, 8 Ω |
WX502MK2/OW – Outdoor white version
Highlights
- 1" Dome tweeter
- 5 1/4" Low frequency loudspeaker
- Vertical and horizontal mounting
- Aluminum grill
- Aluminum mounting bracket (MK2 version)
- AWX5™ waterproof connector
- Multi-tapping 70V / 100V line transformer
Description
The WX502/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt.
The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX502/O vertically as well as horizontally.
Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.
Applications
- Corporate
- Retail
- Museums & Themeparks
- Sporting facilities
- Bars & Restaurants
System specifications
| Property | Value |
|---|---|
| Connectors | Waterproof AWX-5 connector |
| Crossover / Frequency | 2.5 kHz |
| Crossover / Type | Passive built-in |
| Drivers / HF | 1” |
| Drivers / LF | 5” |
| Frequency / Range (-10 dB) | 55 Hz - 20 kHz |
| Frequency / Response (± 3 dB) | 70 Hz - 18 kHz |
| Impedance | 8 Ω |
| Ingress Protection rating | IP55 |
| Program power handling | 100 W |
| Sensitivity (1W/1m) | 87 dB |
| Sound Pressure (Max. W/1m) / @ 100 V | 102 dB |
| Sound Pressure (Max. W/1m) / @ 8 Ω | 104 dB |
| Speaker type | 2-way |
| Continuous power (AES) | 50 W |
| Dispersion / Horizontal | 110° |
| Dispersion / Vertical | 110° |
| Line Transformer Tappings / 1 | 125 Ω - 100 V / Not used - 70 V / 40 W |
| Line Transformer Tappings / 2 | 250 Ω - 100 V / 40 W - 70 V / 20 W |
| Line Transformer Tappings / 3 | 500 Ω - 100 V / 20 W - 70 V / 10 W |
| Peak power handling | 200 W |
Product Features
| Property | Value |
|---|---|
| Colours | Black (RAL9005) (WX502MK2/OB) |
| Colours | White (RAL9003) (WX502MK2/OW) |
| Construction | ABS |
| Dimensions | 212 x 147 x 136 mm (W x H x D) |
| Front finish | Aluminium grill |
| Mounting & handling | Mounting bracket |
| Operating temperature | -25 °C ~ 70 °C |
| Weight | 2.540 kg |
| Accessories / Included | 5-pin connection cable (70 cm) AWC07 |
| Accessories / Included | Mounting bracket |
| Accessories / Optional | AWC07 - AWX5 cable 0.7 m |
| Accessories / Optional | AWC25 - AWX25 cable 2.5 m |
| Accessories / Optional | AWC50 - AWX50 cable 5 m |
Product attributes
- Program power handling: 100 W
- Driver size: 5"
- Features: Full range, Weatherproof
- Impedance: 8 Ω, High impedance (70 & 100V)
- Weatherproof: Yes
- Usage: Indoor, Outdoor
Key features
- Certification: IP55
- Voltage: 70/100 V
- Impedance: 8 Ohm
- Warranty: 5 years
- Properties: Weatherproof
